200m Mining Core Drilling Machine

Product Description

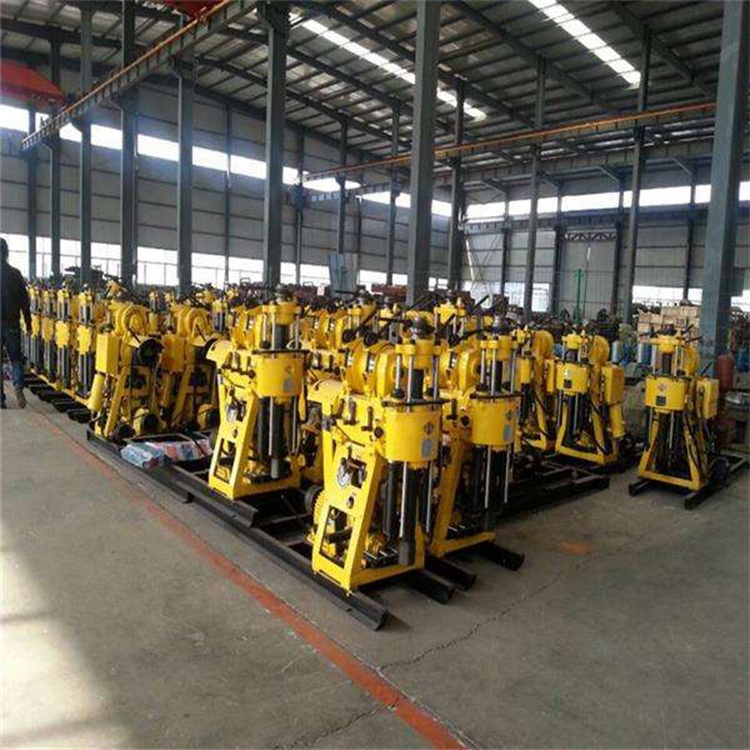

Multifunctional HZ200 Diamond Core Mining Drill Rig
The core rotary drilling rig are wide range of lightweight core drilling rigs that are small, lightweight and easy to handle. Suitable for geological survey of railways, water conservancy, bridges, foundations and other buildings, geological core drilling, small grouting holes, blasting holes, water well drilling. According to the formation, diamonds, composite sheets and alloy drill bits are selected for drilling.

With large rotary torque which are better than the other same level drilling machines. The rotary unit has different rotating speed grades, which can meet the requirements in different layers and different drilling projects and very effective in diamond drilling.

Detailed Parameter

Model	HZ - 130Y/130YY	HZ - 180Y/180YY	HZ - 200Y / 200YY
Drilling depth(m)	130	180	200
Open hole dia.(mm)	220	220	325
End hole dia.(mm)	75	75	75
Drill rod dia.(mm)	42 - 60	42 - 60	42 - 60
drill angle(°)	90 - 75	90 - 75	90 - 75
Matching power(kW)	13.2	13.2	14.7
Weight without power(kg)	600 / 740	620 / 750	880 / 970
Dimension(mm)	2400*800*1400	2400*800*1300	2700*900*1500
Speed(r/min)	142 / 285 / 570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Mud pump flow (L/min)	95	95	145

Beijing Silk Road Enterprise Management Services Co.,LTD. founded in 2009, is a r&d enterprise engaged in professional production and management of drilling machine in mines. Over the past 11 years, mining rock drilling machine, mining core drilling machine, borehole drilling machine, anchor drilling machine, water well drilling machine, horizontal directional drilling machine, rotary drilling machine, dth drilling machine, hydraulic crawler drilling machine, truck mounted drilling machine, obtained the unanimous affirmation of the majority of users.The product specification is complete, the quality is excellent, has passed the system authentication, the reliable stable quality wins the domestic most market praise, many users throughout.
