Pneumatic DTH Rock Borehole Underground Drilling Machine

Ask Lasest Price
Brand Name :	OEM
Certification :	ISO,CE
Price :	Negotiation
Delivery Time :	10-20 days working days
Payment Terms :	T/T, L/C, T/T, Western Union
Supply Ability :	Based on the detailed quotation

Add to Cart

Product Details
Company Profile

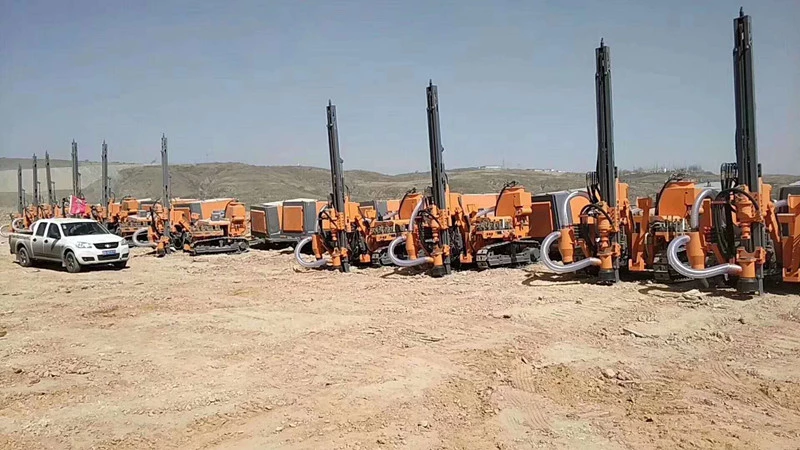

Pneumatic DTH Rock Borehole Underground Drilling Machine

Pneumatic DTH rock borehole underground drilling machine

Product Description

1. The supporting power standard for this type of drilling rig is four-cylinder YC4D80 and electric motor 45KW. The standard configuration of 76mm diameter three-meter drill pipe or a variety of twist drill pipe, is a dual-use diesel and electric models, can be switched at any time.
2, the use of high-torque double cycloidal motor to drive the turret, reducing the failure rate of the original steel ball motor and bulky volume. The rig's torque (up to 4600N.m) has been greatly enhanced, making it a larger range of rock drilling apertures, which can be widely applied to pit foundation anchoring, heel pipe, and large-diameter twist drill pipe operations.
3, self-developed high-performance wet air filter, with dry air filter, to form a three-stage air filtration system, more perfect protection of the diesel engine.
4, rotary two-speed switching valve is easy to operate, to meet the needs of different torque and speed operations.
5, standard assembly plunger travel motor, climbing more powerful, more reliable quality.

SPECIFICATIONS FOR DTH DRILLING RIG
Model	HWZG-420	Hole Depth	30M
Drill Pipe Sizes	76mm*3,000mm	Hole Diameter	110mm-138mm
Hammer	4''/5''	Rotation Torque (Max.)	2500 N.m
Rotation Speed	0-100 rpm	Working Pressure	0.7- 2.5 Mpa
F.A.D	8- 20 cbm/min	Feed Force	20KN
Pull up force	45KN	Feed Type	Chain/Cylinder
Tramming Speed (Max.)	3km/h	Gradinet	25°
Total Weight	5.5T	Transportation Dimensions	510022602500mm
Dry Dust Collector	Option	Power	58KW Diesel Engine

Pneumatic DTH Rock Borehole Underground Drilling Machine
