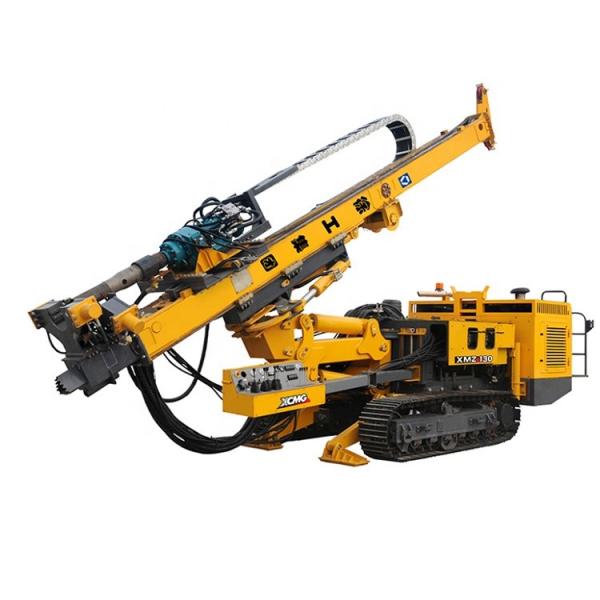

XMZ130 Hydraulic Crawler Anchor Drilling Rig is specially designed
for Micro-piles work. The characteristic of this rig is excellent
motility reliability and high productivity. The active and passive
safety device can ensure the maximum security and provide a full
range of protection. This machine can work in different types
according to the needs. So this kind of drill rig can be used to
drilling construction micro-pipe and anchoring applications .
1. There are each two hydraulic outriggers in rear and front of the
drill rig,with the outriggers it is easily to adjust the degree of
level of the machine and can effectively guarantee the rig body
stability and the accuracy of hole.
2. The complex connecting rod derricking system with multiple
degrees of freedom provides transport convenience, and make it
possible that even working in a narrow and small work region.
3. It adopts the Cummins electric control turbo-supercharged engine
to provide strong power and conformity with Euro III emission
standard.
4. It adopts the Euro Drill HD5012 rotary head, the max. torque can
be 14100Nm,high speed and low speed modes provide a high
applicability of the machine in different layer.
5. The speed of pulling and feeding of the rotary head can be
changed inhigh mode and slow mode, makes it more efficiency that
when drilling and hoisting in slow mode and when loading and
discharging in fast mode, makes it more efficiency.
6. The normal size of the rod can be passed through the clamps is
50~255mm,the maximum breaking torque of the clamp is 30kNm and
maximum clamping force is 150kN, this configuration can easily
satisfied the demand of normal project.
Product parameters
| Description | Unit | Data |
|---|
| Engine | Model | | QSB6.7-C170 |
| Rated power/speed | kW | 129/2200r/min |
| Max. Torque | N·m | 800/1400 |
| Fuel tank capacity | L | 340 |
| Rotary head | Model | | Euro Drill HD5012 |
| low operation | Max. torque | N·m | 14100 |
| Rotary speed | r/min | 39 |
| Fast operation | Max. Torque | N·m | 7050 |
| Rotary speed | r/min | 78 |
| Vibration power | N·m | 650 |
| Vibration frequency | min-1 | 2300 |
| Hydraulic system | Main pump Max. pull-down piston push | Mpa | 25 |
| Main pump | L/min | 176+129 |
| Auxiliary pump | L/min | 43 |
| Hydraulic oil tank capacity | L | 450 |
Hoist & Feed
system | Feed type | | Jack |
| Feed stroke | mm | 4714 |
| Maximum hoist pull | kN | 100 |
| Maximum feed force | kN | 50 |
| Maximum hoist pull speed | m/min | 12.4 |
| Maximum feed speed | m/min | 25.6 |
| Winch | Line pull(1st layer) | kN | 20 |
| Maximum rope speed | m/min | 30 |
| Rope diameter | mm | 12 |
| Rope capacity | m | 50 |
| Undercarriage | Travelling speed | km/h | 3.5 |
| Max. climbable gradient of the overall unit | % | 36 |
| Track shoe width | mm | 400 |
| Over all width | mm | 2250 |
| Overall length | mm | 3040 |
| Average ground pressure | kPa | 73 |
| Clamps | Nominal size | mm | 50-255 |
| Maximum Clamping force | kN | 150 |
| Maximum breaking torque | kN·m | 30 |
| Dimension in transport condition (L × W × H) | mm | 8492×2291×3054 |
| Weight of overall unit(standard configuration) | kg | 13500 |
