    Build Construction 25m Rotary Borehole Drilling Machine

    Ask Lasest Price
    Brand Name : OEM
    Certification : ISO,CE
    Supply Ability : Based on the detailed quotation
    Price : Negotiation
    Delivery Time : 10-20 days working days
    Payment Terms : T/T, L/C, T/T, Western Union
    • Product Details
    • Company Profile

    Build Construction 25m Rotary Borehole Drilling Machine

    Build Construction 25m Rotary Borehole Drilling Machine


    Specification


    Description

    Unit

    Data

    Max. Drilling Diameter

    mm

    1800

    Max. Drilling Depth

    m

    25

    Engine

    Model

    /

    Cummins GBT5.9-C210

    Rated Power

    kW

    154

    Rotary Drive

    Max. output torque

    kN .m

    80

    Rotary speed

    r/min

    17-40

    Pull-Down Cylinder

    Max.pull-down piston push

    kN

    80

    Max.pull-down piston pull

    kN

    100

    Max.pull-down piston stroke

    mm

    2000

    Main Winch

    Max.pulling force

    kN

    100

    Max. single-rope speed

    m/min

    70

    Diameter of the steel wire rope

    mm

    24

    Auxiliary Winch

    Max.pulling force

    kN

    60

    Max. single-rope speed

    m/min

    54

    Diameter of the steel wire rope

    mm

    16

    Traveling

    Max. traveling speed

    km/h

    2.6


    Min.ground claerance

    mm

    340

    Approach angle

    °

    21

    Departure angle

    °

    18

    Max.grade ability

    %

    30

    Overall Drilling Weight

    t

    26

    Dimension

    Transportation condition(L×WH)

    mm

    10100×2600×3500

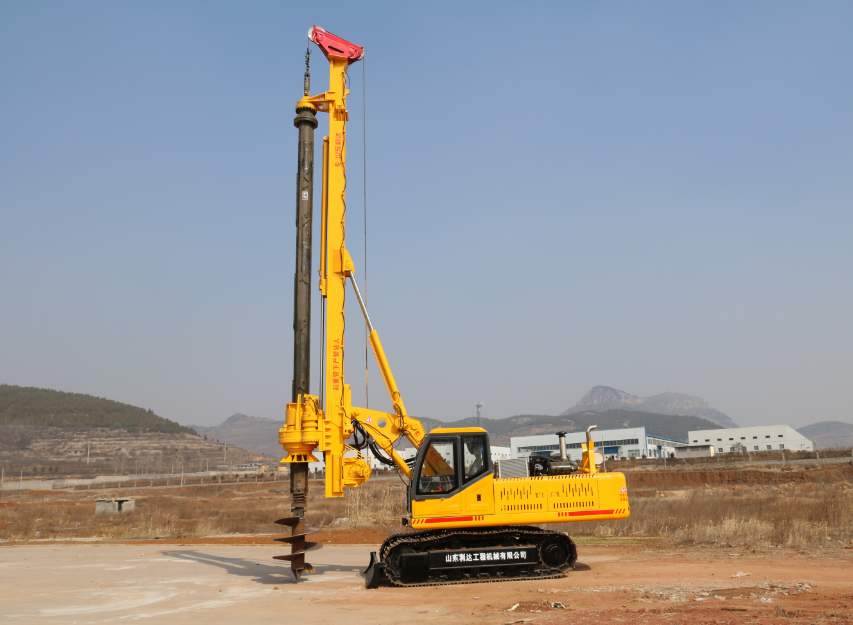

    Product Display


    Build Construction 25m Rotary Borehole Drilling Machine



    Build Construction 25m Rotary Borehole Drilling Machine
