Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig

Ask Lasest Price
Brand Name :	OEM
Certification :	ISO,CE
Supply Ability :	Based on the detailed quotation
Price :	Negotiation
Delivery Time :	10-20 days working days
Payment Terms :	T/T, L/C, T/T, Western Union

Add to Cart

Product Details
Company Profile

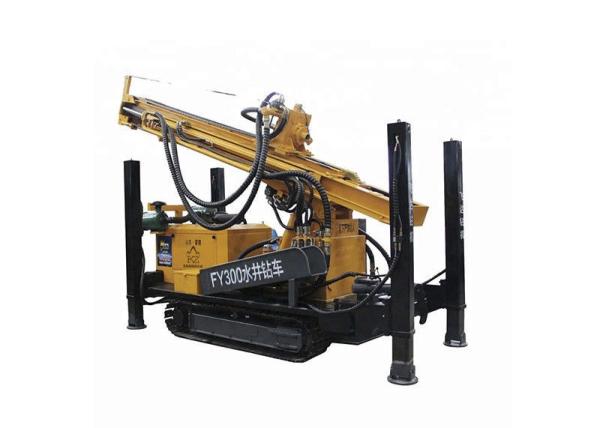

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig

Product Specification

This model rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.

Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability.

Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.

The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.

Technical Parameters

Technical Parameters of SRFY300 Crawler type water well drilling rig
type	SRFY300
The weight	9T
Dimension	590020002850mm
The hole diameter	140-325mm
Drilling depth	300m/1000ft
One-time advance length	6.6m
Walking speed	2.5KM/H
Climbing angles	30
Power	84KW
Using air pressure	1.7-3.3MPA
Air consumption	17-35
Drill pipe length	1.5m 2.0m 3.0m 6.0m
Drill pipe diameter	89mm,102mm,
Rig lifting force	20T
Swing speed	55-115rpm
Swing torque	6200-85000N.m

Rotary 300m Water Well Hydraulic Crawler Mounted Drill Rig
