Four Wheel 150m Portable Water Well Borehole Drilling Rig

Ask Lasest Price
Brand Name :	OEM
Price :	Negotiation
Certification :	ISO,CE
Delivery Time :	10-20 days working days
Payment Terms :	T/T, L/C, T/T, Western Union
Supply Ability :	Based on the detailed quotation

Add to Cart

Product Details
Company Profile

Four Wheel 150m Portable Water Well Borehole Drilling Rig

Four Wheel 150m Portable Water Well Borehole Drilling Rig

Product Description

SLY510 Borehole Drilling Rig is lightweight, efficient, multi-purpose drilling equipment, whichcan use air, foam or mud rotary for percussive drilling according to different textures. It is widelyused in industrial and agricultural water conservancy projects, such as drilling wells, testing wells orother exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet theengineering basis for reinforcement, loose gravel drilling rock formation connected with a variety ofengineering requirements.

Technical Specification

Bore Diameter (mm)	90-220
Bore Depth (mm)	150
Rock Hardness (F)	6-20
Air Pressure (Mpa)	1.05-3.0
Air Consumption (m³/min)	16-30
Once Promotion (mm)	2000
Maximun Height from The Ground (mm)	320
Rotation Speed (r/min)	0-100
Rotation Torque (NM)	3900
Dimension (LWH) (mm)	542522502470
Host Power (kW)	56/87 (Optional)
Weight (kg)	6000
Mud Pump (Optional)	BW450/5
Pump Speed (L/min)	172-450
Pump Pressure (Mpa)	2.0-5.0

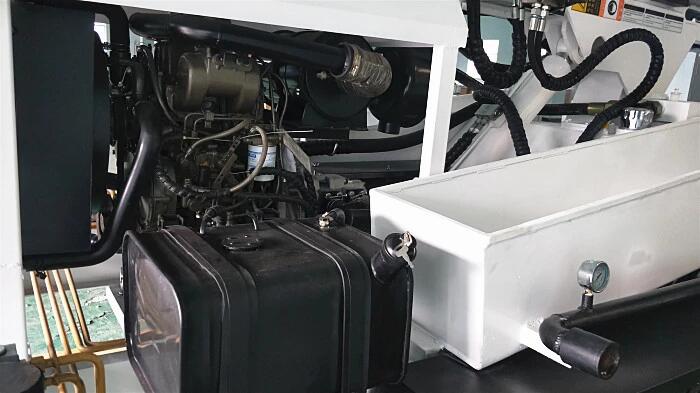

Detailed Images

Four Wheel 150m Portable Water Well Borehole Drilling Rig

Product packaging

Four Wheel 150m Portable Water Well Borehole Drilling Rig
